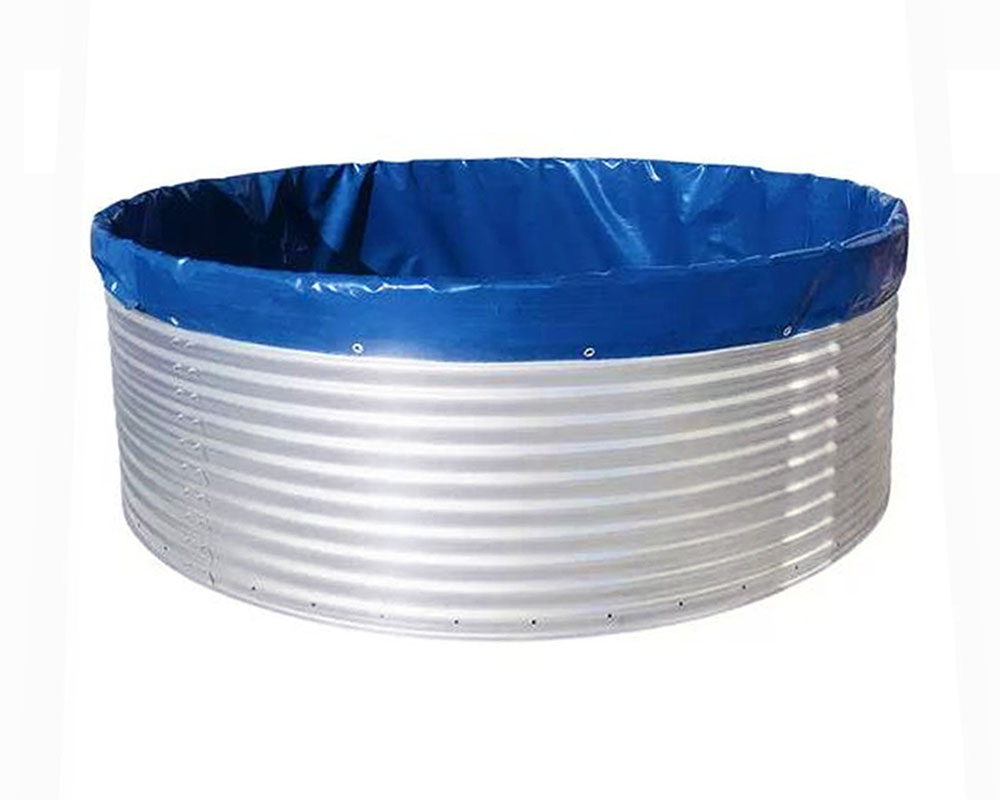

Water tanks—especially steel panel tanks like Hot-Dip Galvanized (HDG) bolted corrugated panel tanks—are often made with corrugated (wavy or ribbed) panels for important engineering and structural reasons. This design is not just for appearance; it significantly enhances the tank’s performance.
Here’s why water tanks are corrugated:
🔧 1. Increased Structural Strength
- Flat steel sheets are relatively weak under pressure, especially when holding large volumes of water.
- Corrugation (forming ridges and grooves) dramatically increases the stiffness and strength of the panel—similar to how a flat piece of paper becomes stiffer when folded into a zigzag shape.
✅ Think of it like corrugated cardboard: a thin sheet becomes much stronger when shaped into waves.
This allows the tank to:
- Withstand the hydrostatic pressure of water (which increases with depth).
- Resist bulging or deformation at the bottom where pressure is highest.
🛠️ 2. Reduces Need for Thicker Steel
- Corrugated panels can use thinner gauge steel while still maintaining strength.
- This reduces material cost and weight, making the tank:
- More affordable
- Easier to transport
- Simpler to assemble
💡 For example, a 2 mm corrugated steel panel can perform like a much thicker flat panel.
🔩 3. Improves Panel-to-Panel Connection
- The corrugated ridges help align and interlock adjacent panels during assembly.
- When bolted together, the continuous wave pattern helps distribute stress evenly across joints.
- This improves watertightness and reduces stress concentration at bolt holes.
🌊 4. Better Resistance to Dynamic Loads
- Corrugated walls are better at handling:
- Wind loads (for above-ground tanks)
- Seismic (earthquake) forces
- Thermal expansion/contraction
- The shape allows slight flexing without permanent deformation.
🏗️ 5. Facilitates Modular Design
- Most HDG water tanks are built from pre-fabricated panel modules.
- Corrugated panels are easy to standardize, mass-produce, and ship.
- They fit together like puzzle pieces, speeding up on-site assembly.
🆚 Corrugated vs. Flat Panels
| Feature | Corrugated Panels | Flat Panels |
|---|---|---|
| Strength | High (due to shape) | Lower (requires thicker steel) |
| Material Use | Efficient (thinner steel) | More material needed |
| Cost | Lower | Higher |
| Assembly | Easier alignment | Requires more precision |
| Aesthetics | Ribbed appearance | Smooth look |
| Common Use | HDG bolted tanks, rural water projects | Stainless steel tanks, premium installations |
⚠️ Note: Some stainless steel tanks use flat panels because the material is inherently stronger and more rigid, but they are often thicker and more expensive.
🌍 Real-World Example: HDG Tanks in Africa
In African markets, where cost, durability, and ease of transport are critical, corrugated HDG tanks dominate because they offer:
- High strength-to-weight ratio
- Affordable pricing
- Easy assembly by local technicians
- Long life with minimal maintenance
✅ Summary: Why Are Water Tanks Corrugated?
✅ To make thin steel panels stronger
✅ To resist water pressure without bulging
✅ To reduce material cost and weight
✅ To improve structural stability and durability
✅ To support modular, bolt-together construction
The corrugated design is a smart engineering solution that combines strength, efficiency, and economy—making it ideal for large-scale water storage tanks around the world.
