Acorrugated steel tank for fish farming is a type of modular, durable, and cost-effective aquaculture system made from hot-dip galvanized (HDG) or sometimes aluzinc-coated corrugated steel panels that are bolted together to form a watertight container used for raising fish.
These tanks are increasingly popular in modern aquaculture, especially in Africa, Asia, the Middle East, and rural areas worldwide, due to their strength, ease of installation, and adaptability.
🐟 What Is a Corrugated Steel Tank Used For in Fish Farming?
It serves as a controlled environment for:
- Raising fish such as tilapia, catfish, trout, bass, or ornamental fish
- Hatcheries and fingerling production
- Recirculating Aquaculture Systems (RAS)
- Biofloc systems
- Emergency or temporary fish farming setups

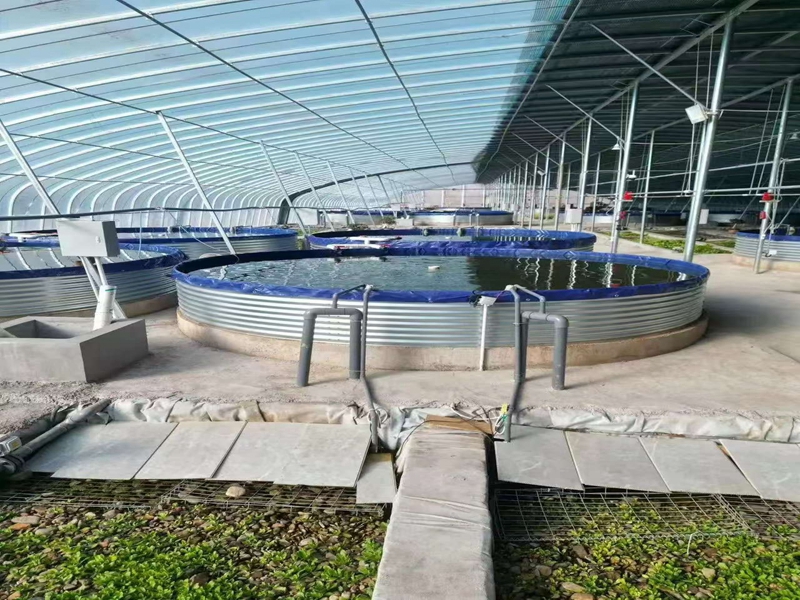

They can be used indoors or outdoors, on farms, rooftops, or even in urban settings.
🔧 Key Features of Corrugated Steel Tanks for Aquaculture
| Feature | Benefit |
|---|---|
| Corrugated (ribbed) steel panels | Increased strength to withstand water pressure and external loads |
| Hot-Dip Galvanized (HDG) coating | Protects against rust and corrosion; long lifespan (15–25 years) |
| Bolted modular design | Easy to assemble, disassemble, and relocate |
| Available in various sizes | Diameter: 4m to 20m+; Height: 1m to 3m; Capacity: 5,000L to 1,000,000+ liters |
| Flat bottom or conical bottom options | Flat for general use; conical for better sludge drainage in RAS |
| Liner compatible | Usually lined with food-grade PVC or EPDM rubber liner to make it watertight and safe for fish |
✅ The tank itself is not directly in contact with water—a flexible, non-toxic liner is installed inside to hold the water and protect fish.
✅ Why Use Corrugated Steel Tanks for Fish Farming?
1. Durable & Long-Lasting
- Withstands harsh weather, UV exposure, and mechanical impact.
- Galvanized coating resists rust, even in humid or coastal environments.
2. Easy & Fast Installation
- No heavy machinery or skilled labor needed.
- Can be assembled in 1–3 days, depending on size.
- Ideal for remote areas with poor infrastructure.
3. Cost-Effective
- Much cheaper than concrete or stainless steel tanks.
- Lower transport cost due to flat-pack design (panels shipped stacked).
4. Hygienic & Easy to Clean
- Smooth inner liner prevents algae and biofilm buildup.
- Drains completely for cleaning, disinfecting, and restocking.
5. Scalable & Flexible
- Start small and add more tanks as needed.
- Can be arranged in rows for commercial fish farms.
6. Compatible with RAS & Biofloc
- Works well with:
- Aeration systems (air stones, blowers)
- Water filters and biofilters
- Pumps and recirculation plumbing
- Sludge removal systems (central drain + valve)
7. Space Efficient
- Round tanks provide excellent water circulation and minimal dead zones.
- Can be placed on uneven ground with proper foundation.

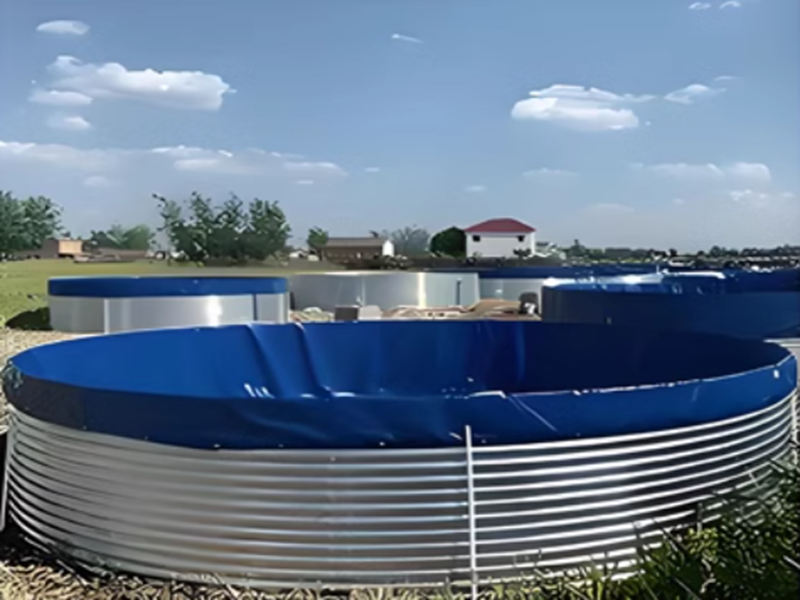

🏗️ Typical Setup for a Fish Farming Corrugated Steel Tank
- Foundation: Level concrete slab or compacted gravel/sand with support beams
- Tank Assembly: Bolt together galvanized corrugated panels
- Liner Installation: Fit food-grade PVC or EPDM liner (0.5–1.0 mm thick)
- Plumbing:
- Inlet pipe (for fresh water)
- Outlet/drain valve (for water exchange and sludge removal)
- Aeration system (air diffusers or oxygen cones)
- Accessories:
- Cover net (to prevent fish jumping and predators)
- Water testing kit
- Temperature monitor
- Feed rings
🐠 Common Fish Species Raised in These Tanks
- Tilapia (most common – hardy and fast-growing)
- Catfish (e.g., Clarias gariepinus)
- Trout (in cooler climates)
- Barramundi
- Ornamental fish (e.g., koi, goldfish)
⚠️ Important Considerations
| Issue | Solution |
|---|---|
| Zinc leaching (from galvanized steel) | Always use a high-quality liner to prevent water contact with metal |
| UV degradation of liner | Use UV-resistant liner and install shade cloth or roof |
| Algae growth | Limit sunlight with covers; manage nutrients |
| Structural stability | Ensure proper foundation and anchoring in windy areas |
✅ Never allow water to touch bare galvanized steel in fish tanks—zinc can be toxic to fish at high levels. The liner is essential.
🌍 Real-World Use Cases
- Kenya & Uganda: Used in smallholder aquaculture projects supported by FAO and World Bank.
- Nigeria & Ghana: Commercial tilapia farms using 10m diameter tanks.
- South Africa: Integrated with RAS for trout farming.
- Middle East: Desert fish farming using lined corrugated tanks.
✅ Conclusion
A corrugated steel tank for fish farming is a smart, modern solution for sustainable aquaculture. It combines:
- Strength (corrugated HDG steel)
- Safety (with food-grade liner)
- Affordability
- Ease of use
It’s ideal for beginners and commercial farmers alike, especially in regions where traditional pond farming is limited by land, water, or climate.
💡 Want to Build a Fish Farm?
If you’re planning to use corrugated steel tanks for aquaculture, I can help you with:
- Tank sizing (based on fish type and density)
- Liner selection
- Aeration and plumbing design
- Cost estimation
- Supplier recommendations (especially from Alibaba or African distributors)
Just share your:
- Location
- Fish species
- Target production (kg/month)
- Water source
And I’ll guide you step by step! 🐟💧
