Water Level Meter: Overview
A Water Level Meter is a device used to measure the depth from the surface to the water level (also known as the “drawdown” or “depth to water”) in water tank. It is the “eyes” for your water tank, allowing you to know how much water is available without having to look inside physically.
Its core function is to translate the physical water level into a readable signal, which could be a simple visual indication, an electrical signal, or a digital readout.
Water Level Meter: Main Types

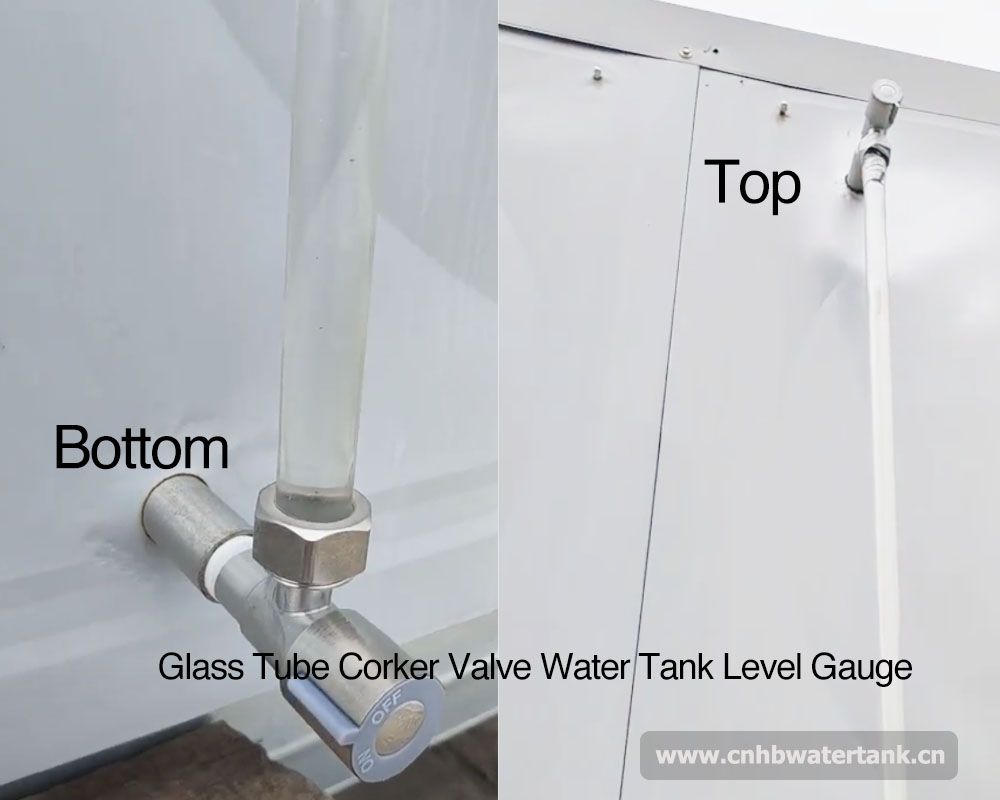

✅ Glass Tube Corker Valve Water Tank Level Gauge
A Glass Tube Water Tank Level Gauge (also known as a sight glass level gauge or reflex level gauge) is a simple, direct-reading device used to visually monitor the water level inside a tank, boiler, or pressurized vessel. It operates based on the principle of communicating vessels, where the water level in the transparent tube matches the level in the tank.
How It Works
The glass tube is connected to the tank at two points:
- One connection near the bottom of the tank.
- One connection near the top of the tank .
Since the glass tube and the tank form a connected system, water flows into the tube until the level inside the tube is equal to the level inside the tank. This allows operators to visually observe the exact water level in real time.
Advantages
– Direct Visual Reading: No electronics or external power required.
– High Reliability: Simple mechanical design with few failure points.
– Real-Time Monitoring: Immediate feedback on water level.
– Easy to Install and Maintain: Standardized connections and accessible design.
– Cost-Effective: Inexpensive compared to electronic sensors.

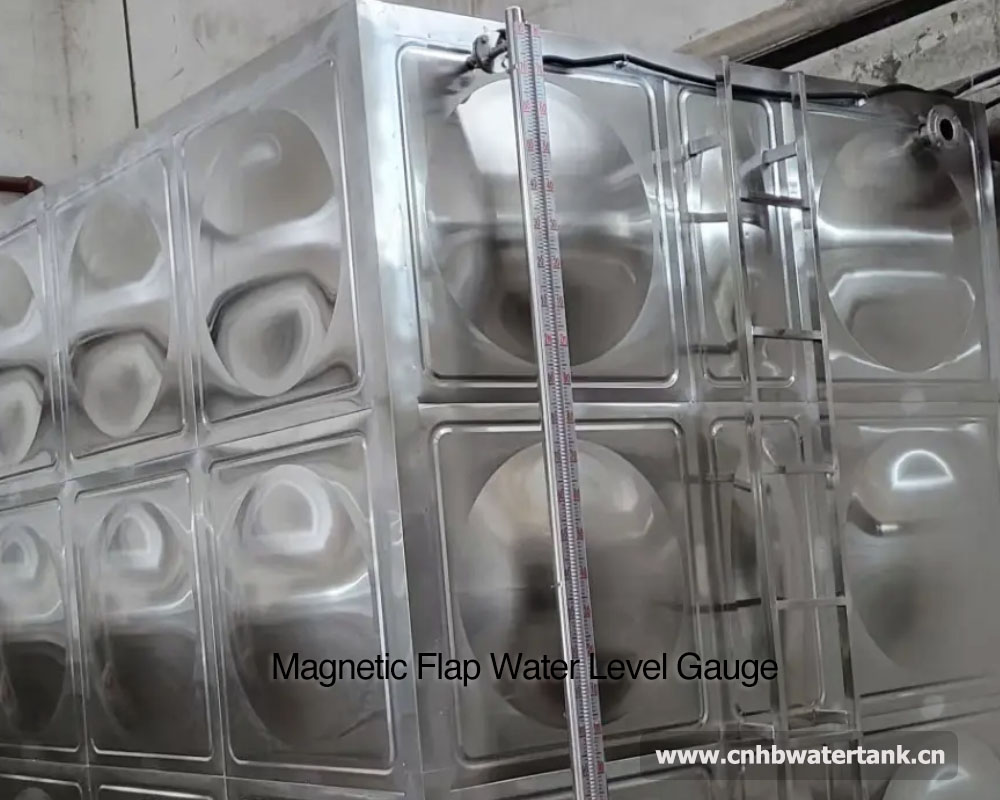

✅ Magnetic Flap Water Level Gauge
A Magnetic Flap Water Level Gauge (also known as a magnetic level indicator, magnetic level gauge, or flip-flap level indicator), It is a highly reliable, visual level indicator that uses magnetism and a series of colored flaps to display the liquid level in a water tank. Unlike a glass tube gauge, the process fluid is not directly visible; instead, you see a starkly contrasting magnetic “flag” display.
How It Works
Principle: Uses communicating vessels – the gauge chamber connects to the tank, so liquid levels match.
Float: A magnetic float inside the chamber rises and falls with the liquid.
Flaps: External hinged flags with magnetic followers rotate as the float passes.
Indication: Two-colored flaps (e.g., red/white) flip to show liquid level clearly.
Result: A visible color line indicates real-time level without power. Durable, safe, and ideal for water and industrial tanks.
Types Comparison
While the magnetic flap gauge is superior in most technical aspects, the glass tube gauge retains a few key advantages beyond just lower cost:
Direct, Unambiguous Measurement: It shows the actual liquid itself. There is no intermediate mechanism (like a float or magnets) that can fail and provide a false reading. What you see is the absolute truth, which is valuable for critical visual verification.
No Mechanical Failure Modes: It cannot suffer from a stuck float, demagnetized magnet, or jammed flap display—common failure points in magnetic gauges, especially with slightly dirty or scaling water.
No Calibration Required: Its accuracy is inherent based on the communicating vessels principle. A magnetic gauge’s float must be correctly sized for the liquid’s density, and the chamber must be aligned properly.
Simplicity for Viscous Liquids: While not ideal, very viscous liquids that could impede a float’s movement will still often show a level in a glass tube, albeit slowly.
In essence, the glass tube’s primary non-cost advantage is its fundamental simplicity and guaranteed truthfulness, making it a trusted choice for basic applications where direct visual confirmation is paramount.
Conclusion
The glass tube water tank level meter is a timeless, reliable tool for visual level monitoring. Despite the rise of electronic sensors, it remains widely used—especially in critical applications like boilers—due to its simplicity, accuracy, and independence from power or complex electronics. However, proper installation, maintenance, and safety precautions are essential for safe operation.
The Magnetic Flap Water Level Gauge is a highly reliable, maintenance-friendly solution for continuous visual level monitoring. Its combination of magnetic coupling, durable construction, and intuitive color-coded display makes it a preferred choice in environments where safety, visibility, and reliability are critical—especially as a backup or primary indicator in water and industrial systems.
For a new start clients, we suggest use glass tube type is enough, if has fixed request with the magnetic flap from end user, we also can provide it.
