GRP Sectional Water Tank, is also called “SMC modular water tank” or "Sectional panel water tank", It is a good way to store water, It is installed by SMC panels, bolts & nuts, Seal components, steel instruction parts, Pipe connection flanges. It is easy and quick to installation. The GRP panels are connected by the bolts&nuts, steel support rod, sealing rubber strips, basic channel steel, lacing wire, lacing wire plates, ladders, manhole cover, flanges, etc. More and more traditional water tanks are being replaced by GRP tanks.
SMC = Sheet Moulding Compound
FRP = Fiber-Reinforced Plastics
GRP = Glass-Reinforced Plastic
GRP Sectional Water Tank/ China Supplier / Exporter
We export products include GRP water tank, FRP water tank, Galvanized steel water tank, stainless steel water tank etc. We provide customers with perfect service, and to the most competitive price, provide customers best quality products. Our entire operation is focused on the precise needs of our customers.
Structure of GRP Sectional Water Tank
GRP water tank structure mainly incude 5 party ,1) SMC panels, 2)connetction bolts and nuts, 3)inner accessories, 4)outter accessories and 5) C-chanel base.
Panel size: 1000mm*1000mm, 1000mm*500mm, 500mm*500m，1500*1000mm，2000*1000mm
Panel thickness(according to height):2mm-18mm
Foundation: Concrete foundation or U-steel bottom base
Performance of Water Tank/ Panel
| Tensile strength,Mpa: | ≥60 |
| Bending strength,Mpa: | ≥100 |
| Bending modulus,Gpa: | ≥7.0 |
| Pap hardness: | ≥60 |
| Bibulous rate,% : | ≥60 |
| Glass fiber content,% : | ≥25 |
Accessories of GRP Sectional Water Tank
Accessories is very important party of water tank, it is mainly include inner accessories and outer accessories, the material of accessories we can provide customer different material for choose, mainly include carbon steel with galvanized surface and stainless steel (SS304 and SS316), for drink water storage, it is need to choose inner stainless steel accessories, if not for drink, both material can be choose.
| ● PANELS -- Size: 1000× 1000mm, 1000× 500mm, 500× 500mm Panel thickness : 4mm, 5mm, 8mm, 10mm, 12mm, 14mm, 16mm. ●BOLTS & NUTS & WASHERS -- ●BASE STEEL-- ●INTERNAL STRUCTURE-- | ●FLANGES-- For drainge, overflow hole etc. Hot dipped galvanized or stainless steel ●SEALING RUBBER-- ●LADDERS-- ●WATER INDICATOR-- ●MANHOLE COVER-- |

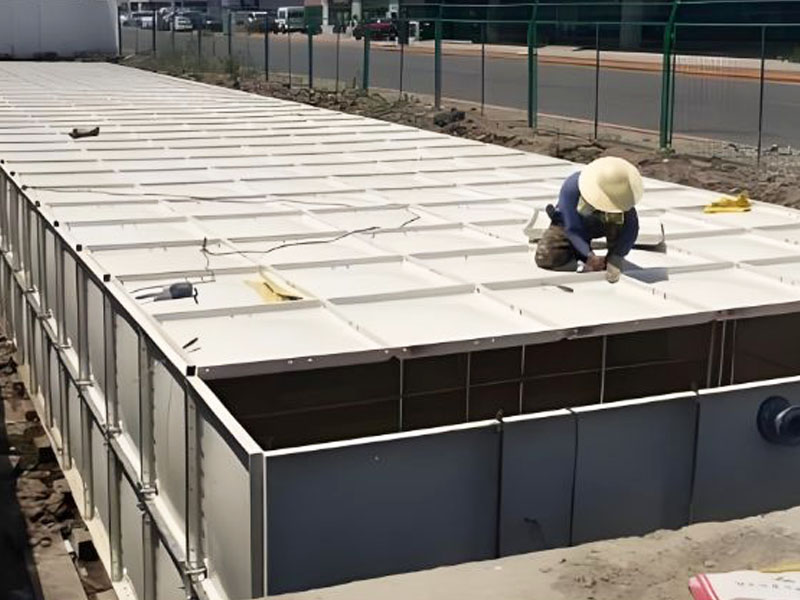

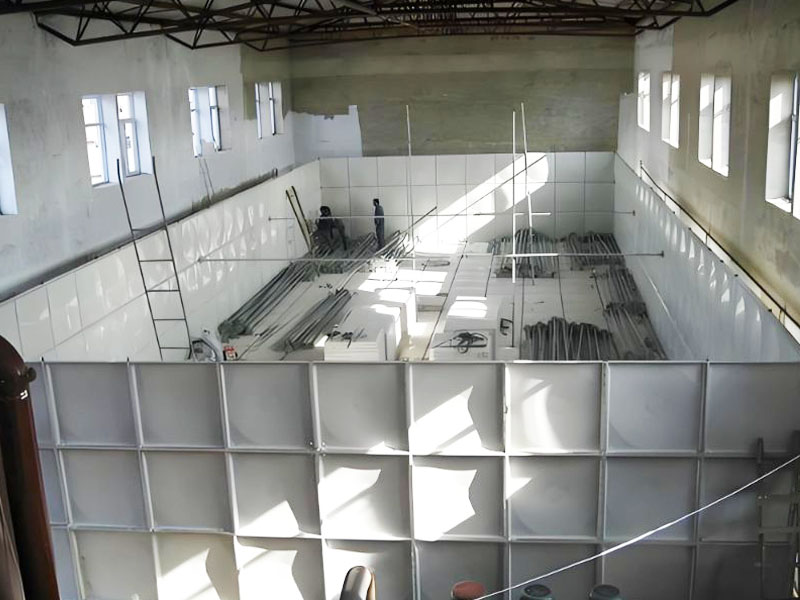

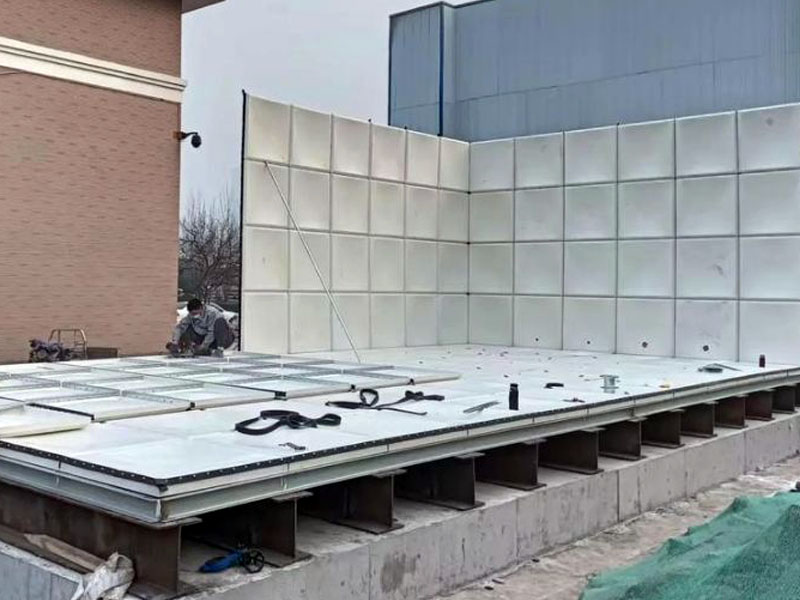

Installation of GRP Sectional Water Tank
Application of GRP Sectional Water Tank
The water tank has been widely used in:
- Residential buildings
- Hotels & office buildings
- R&D building, schools, malls, restaurants
- Hospitals and food processing plants
- other public facilities as well as places with high requirements for water quality.
Q: What size and capacity can i buy from you?
A: From capacity 1m³ to 1000m³，we can suggest you the dimensions according your capacity request.Such as 10m³, 20m³, 100m³, 200m³, 250m³, 500m³etc.Or 1000 litre, 5000 litre, 6000 liter etc, or 3000 gallon, 5000 gallon, 100000 gallon etc.We can supply the capacity as customer request.
Q: How to choose the water tank ?
A: 1) Confirm the volume. 2)consider the height, lenght and width of water tank. 3)consider the accessories material is stainless steel or galvanized steel, it can depends by what kind of water you will storage, for drink water or other type water. 4) check it will install outside of inside
Q: What is difference between GRP and FRP?
A: FRP means fiber-reinforced plastics, it's a term typically used stateside here in North America. GRP is a term that means the same thing. But it's generally used over in Europe and Asia and stands for glass-reinforced plastic.
Q: How you guide the installation of GRP water tank?
A: We supply installation guide, Installation tools and training service to clients,
If need us to support installation work at customer’s side,we also can provide on customer’s requirement.
Installation preparation work: before installation, please do construct of concrete basic foundation, provide electric power supply, check needed water.
Q: How to maintenance GRP water tank?
A: Maintenance service is applied when customer cannot solve problem by themselves.
Avoid fire near to water tank. Please protect water tanks when welding steel channels, Avoid pollutant enter into water tank. In order to convenient maintenance, please leave some space between water tank and wall. Please do not beat water tank body by any tools or something hard. New water tank must be clean two times before using.
Q: Are fiberglass water tanks safe for drinking water?
A: Yes, it is safe for drinking water. The raw material used in the FRP water tank is “food-grade resin”, and all the accessories in the water tank use material stainless steel 304 or 316, So it is completely no problem to install drinking water.
Q: How can i buy GRP water tanks from you?
A: You can order by directly contacting us through email or telephone.We have many sizes of products like different dimensions of of GRP water tanks (Sectional GRP tanks, modular water tank, FRP water storage tank, SMC panel tanks, FRP panel tank, GRP panel tank, GRP sectional water tank, GRP panel tank etc.)
Q: How to calculate the price of FRP water tank?
A: The price depends on below factor, when you inquiry, for quote firm accurate price, it’s better to provide full complete information. Such as Dimension: Length, Width, Height, Water temperature, Need insulation or not, has any requirements on insulation layer material or as our suggestion. Has any request on accessories material( galvanized or stainless steel ) etc.
Q: What is the advantage of GRP water tank compare with common material water tank?
A: It is made by material of fiberglass reinforced plastic, it consist mainly fiberglass and resin, it is hydraulically hot pressed into panels of varying size. Has benefits of Light weight, high Strength, Corrosion Free, Easy for handling, installation , Low maintenance cost, Long life material, it is an ideal choice for usage of storage public life water, fire fighting water, and industry water.
Q: Does FRP water tank can be used for fire fighting water tank?
A: Yes, It is a best choice for fire fighting water storage, fire fighting water temperature always is room temperature, If you request not room temperature, you should tell us temperature request before order.
Q: What are the advantages of FRP fire fighting water tanks
A: Light weight, high Strength, Corrosion Free, Easy for handling, installation , Low maintenance cost, Long life .
Q: How to identify the quality problems of SMC FRP water tanks?
A: Good FRP water tank has benefits of Light weight, high Strength, Corrosion Free, beautiful appearance, easy to Maintenance etc, for identify the quality of frp water tank, The first we need to check the appearance, it need to smooth and beautiful, can not has bubbles and sand holes. The second, from the performance, when connected the panels by flange, bolts&nuts, even it is very tight, the panel can not appear cracks.
Q: How much water temperature can the FRP water tank storage?
A: For common material of FRP, it can storage water temperature lower tan 80 C°, if need hold high temperature, the raw material need consist some other special resin, depends on request temperature.
Q: What is the life of FRP water tank?
A: Design life is 40+ years.
Q: Will water leak at the joints of FRP water tanks?
A: Lots of customer ask us about this question, the answer is “No”, Even the FRP water tank is assembled by panels,But is has sealing strip between each panel, will not leak, our sealing strip use the advanced technology, after Many times technical updates, Never occur this problem.
Q: Comparison of 3 commonly used insulation material of FRP water tank?
A: 1.Rubber foam sheet with aluminium foil, price is middle and low, only can use at middle temperature area. 2.Polyurethane foam + steel plate protector, the effect is the best, but cost is high, can use at all area. 3.EPS + Outer protector layer, the effect is middle, price is lower.
Q: What is insulated FRP water tank?
A: FRP water tank plus a layer of heat preservation, then called insulated FRP water tank.
