Corrugated Galvanized Steel Water Storage Tanks
Corrugated steel water tank uses galvanized sheet as raw material, and thickened hot-dip galvanized steel strip as raw material, so that the steel plate will not rust. In the production process, a press is used to press out the corrugated steel plate and assemble it into a round iron barrel shape. The force on all four sides is even, which greatly reduces the pressure of the pool water. Therefore, it can also be used as an orchard mountain irrigation reservoir. The galvanized plate bracket is easy to install and can be fixed directly with screws. It is easy to disassemble. Compared with the welded bracket, it has the advantages of being more firm and flexible. The new canvas fish pond, high-density breeding pond, breeding pond, galvanized plate breeding canvas, shrimp breeding pond, fish tank, water storage breeding canvas, is a kind of knife-scraped cloth. This product is conducive to the precipitation of colloidal molecules in the canvas, which can make the structural molecules stronger after encountering water, and the waterproof and anti-seepage effect is better.
Corrugated Steel Water Tank
SMC means sheet moulding compound, GRP panel manufacture process, flat-pack panels are much easier and cheaper to transport.
Farm Water Storage Tanks
GRP combines glass fibers with a polymer resin, resulting in a material significantly stronger than steel by weight.
Farming Water Tank
Panels can be assembled to create tanks of almost any size (height, diameter, volume) to fit specific space and capacity requirements.
Structural of GRP Water Panel Tanks
High-strength corrugated galvanized steel outer panels, different panel thickness options provide to clients, such as 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm etc, customized capacity ( both diameter and height can be assembled with different size), easy to install and maintenance.
STRUCTURE AND PRINCIPLE
Tank Body: High strength galvannized steel sheet panel, Modular panle sheet, can be asseble at site, galvanized coating(275g/m2), good corrosion resistance performance,custom diameters(3m-30m) , wall heights and thickness(1.0mm,1.2mm,1.5mm,2.0mm,2.5mm) available.
Liner: PVC or TPU tarpaulin, multiple flexible liners option available.

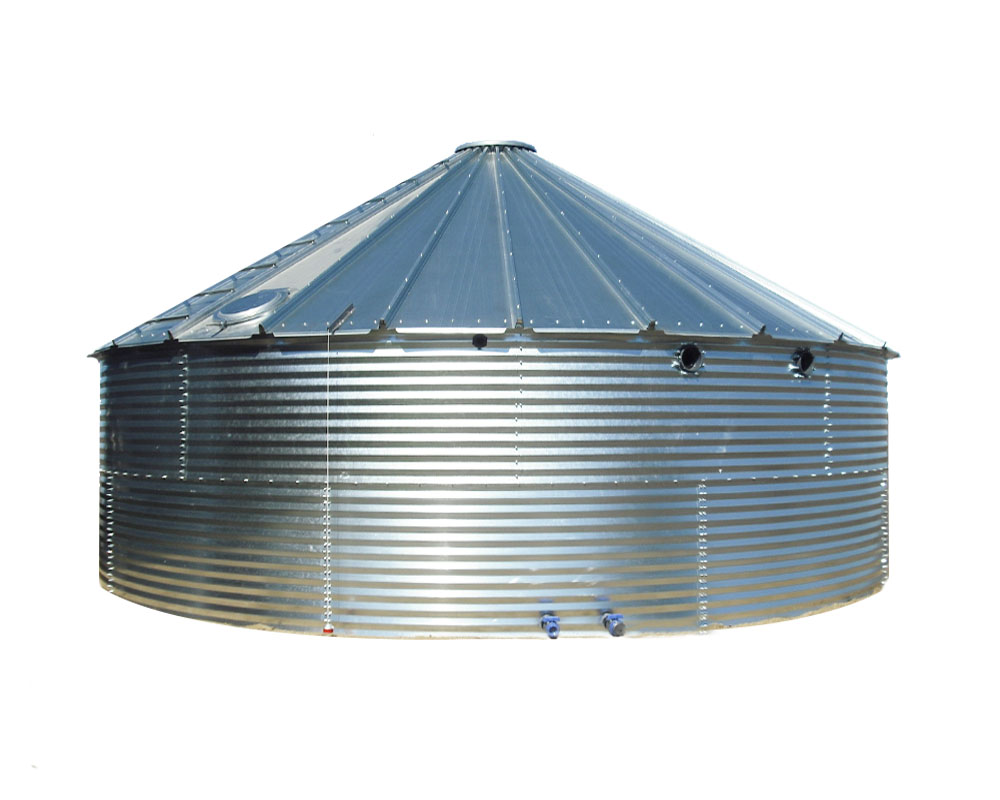

Top Cover: Open or PVC or steel(roof angle design customized such as 10°, 20°or 30°, multiple top cover option, steel roof sheet has flat and V rib design for choose.
Structural composition: mainly composed of galvanized sheet and bracket, and some also include waterproof materials such as canvas. Galvanized sheet is the main wall material of water storage container, which has the characteristics of corrosion resistance and rust resistance; the bracket provides a stable support structure for the entire water storage tank to ensure that it can withstand the pressure of water.
Working principle: By splicing or assembling galvanized sheets into a pool of a certain shape and size, water is stored by taking advantage of its good sealing and corrosion resistance. Water can be stored, water level adjusted and used in the pool as needed to meet the water demand in different scenarios.
Technical Data

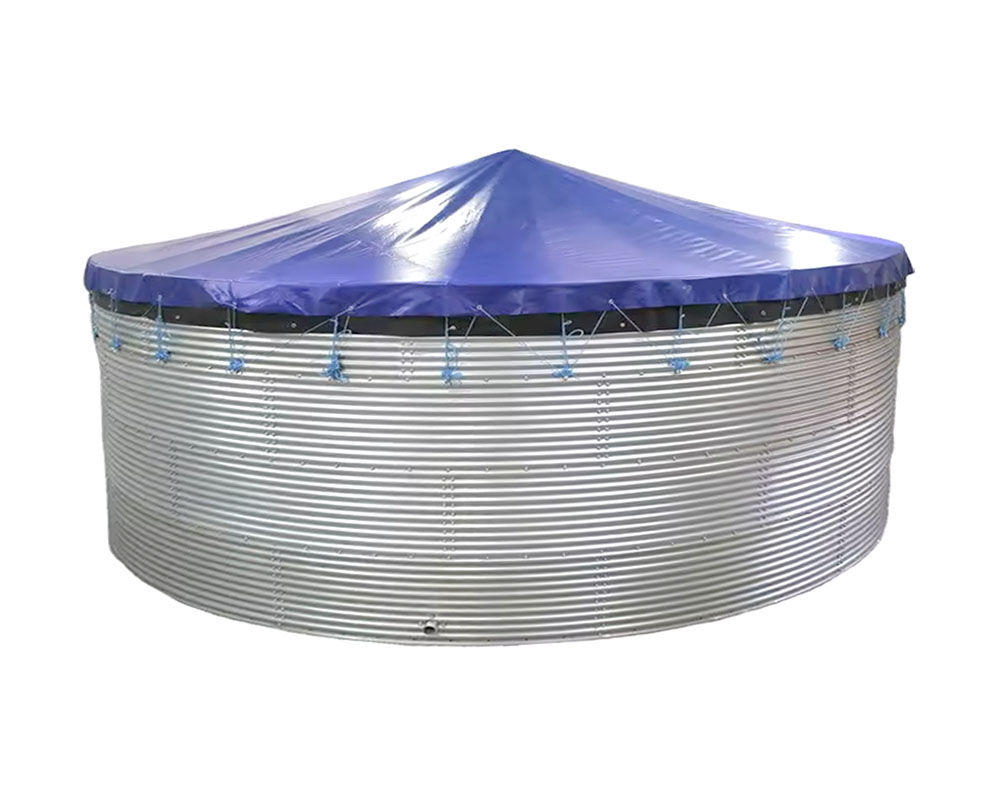

Different type of top roof is available for customer, Open or PVC or steel(roof angle design customized such as 10°, 20°or 30°, multiple top cover option, steel roof sheet has flat and V rib design for choose.
Dimension List
| Diameter（m） | Height1.15m | Height 1.45m | Height 1.8m | Height 2.2m | Height 2.8m |
| Capactiy (m3) | Capactiy (m3) | Capactiy (m3) | Capactiy (m3) | Capactiy (m3) | |
| 3m | 8m3 | 10m3 | 13m3 | 16m3 | 20m3 |
| 4m | 14m3 | 18m3 | 23m3 | 28m3 | 35m3 |
| 5m | 23m3 | 28m3 | 35m3 | 43m3 | 55m3 |
| 6m | 32m3 | 41m3 | 51m3 | 62m3 | 79m3 |
| 7m | 44m3 | 56m3 | 69m3 | 85m3 | 108m3 |
| 8m | 58m3 | 73m3 | 90m3 | 111m3 | 141m3 |
| 9m | 73m3 | 92m3 | 114m3 | 140m3 | 178m3 |
| 10m | 90m3 | 114m3 | 141m3 | 173m3 | 220m3 |
| 11m | 109m3 | 138m3 | 171m3 | 209m3 | 266m3 |
| 12m | 130m3 | 164m3 | 203m3 | 249m3 | 317m3 |
| 13m | 153m3 | 192m3 | 239m3 | 292m3 | 371m3 |
| 14m | 177m3 | 223m3 | 277m3 | 338m3 | 431m3 |
| 15m | 203m3 | 256m3 | 318m3 | 389m3 | 495m3 |
| 16m | 231m3 | 291m3 | 362m3 | 442m3 | 563m3 |
| 17m | 261m3 | 329m3 | 408m3 | 499m3 | 635m3 |
| 18m | 292m3 | 369m3 | 458m3 | 560m3 | 712m3 |
| 19m | 326m3 | 411m3 | 510m3 | 623m3 | 793m3 |
| 20m | 361m3 | 455m3 | 565m3 | 691m3 | 879m3 |
| 21m | 398m3 | 502m3 | 623m3 | 762m3 | 969m3 |
| 22m | 437m3 | 551m3 | 684m3 | 836m3 | 1064m3 |
| 23m | 478m3 | 602m3 | 747m3 | 914m3 | 1163m3 |
| 24m | 520m3 | 656m3 | 814m3 | 995m3 | 1266m3 |
| 25m | 564m3 | 711m3 | 883m3 | 1079m3 | 1374m3 |
| 26m | 610m3 | 769m3 | 955m3 | 1167m3 | 1486m3 |
| 27m | 658m3 | 830m3 | 1030m3 | 1259m3 | 1602m3 |
| 28m | 708m3 | 892m3 | 1108m3 | 1354m3 | 1723m3 |
| 29m | 759m3 | 957m3 | 1188m3 | 1452m3 | 1849m3 |
| 30m | 812m3 | 1024m3 | 1272m3 | 1554m3 | 1978m3 |
| 31m | 868m3 | 1094m3 | 1358m3 | 1660m3 | 2112m3 |
| Mark: 1)We also offer custom sizes diameter and height，both thickness of outer galvanize steel sheet and inner liner sheet has different thickness options for choose. 2) The height and diameter of water tank tolerance is 5cm-10cm. | |||||
Features:
- Durable & Heavy-Duty Construction:
- Waterproof and tear-resistant PVC material.
- Thick galvanized steel panel support for exceptional load-bearing capacity.
- Engineered for a long service life.
- Multi-Purpose Versatility:

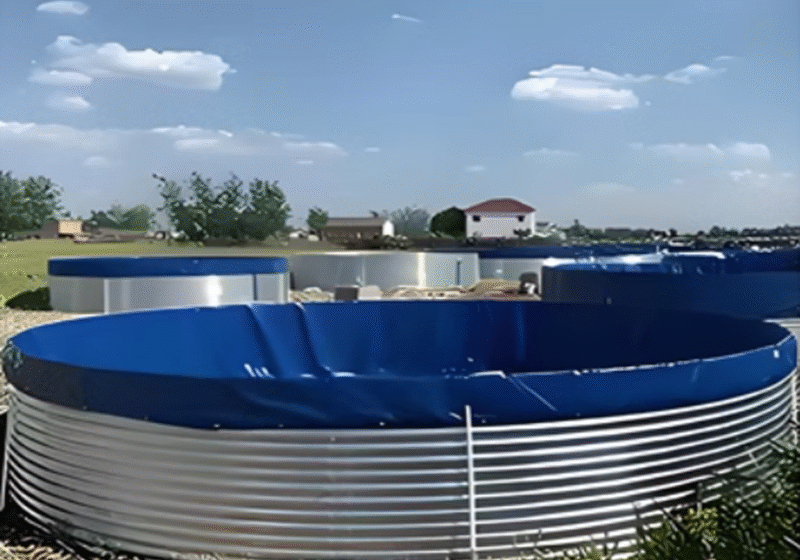

- Ideal for outdoor above-ground fish and shrimp breeding ponds.
- Suitable for various aquatic applications (pond series/pool series).
- Perfect for both outdoor and home-based aquaculture projects.
- Simple & Quick Installation:
- Easy assembly of sturdy brackets.
- Designed for fast installation, disassembly.
Different Type Water Storage Tanks Solution

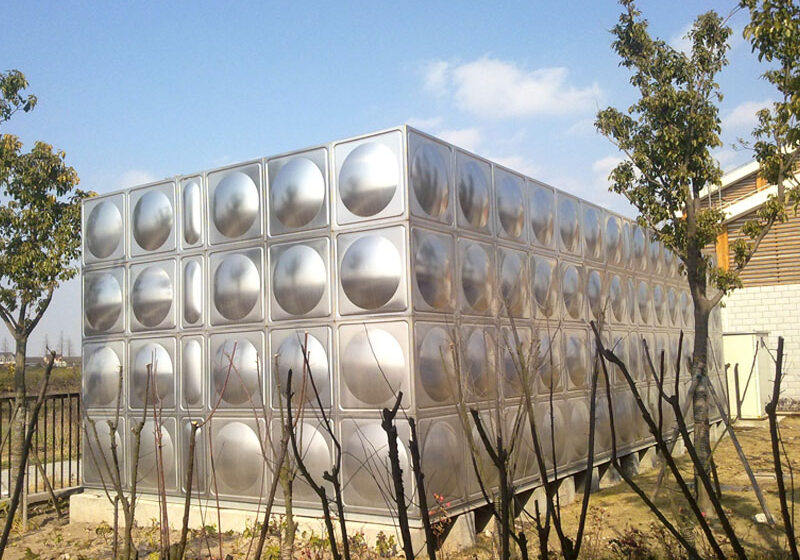

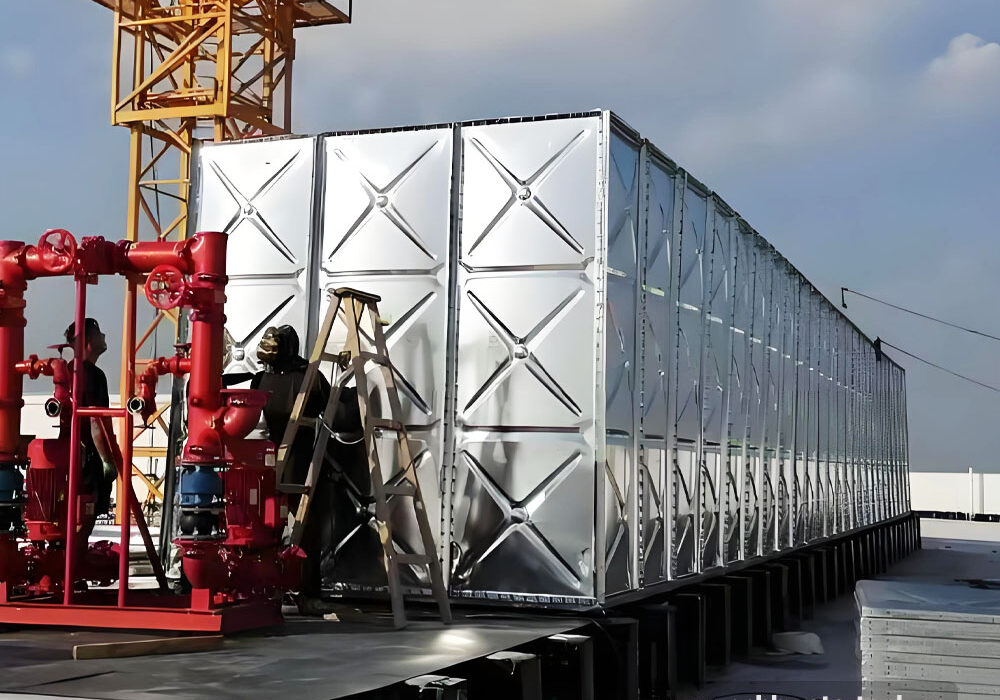

China Supply (Fiberglass) GRP Sectional Panel Water Tank, (HDG) Galvanized Steel Sectional Water Tank, Stainless Steel Sectional Water Tank，Corrugated Round Galvanized Water Tanks, Elevated Overhead Water Tank Tower，Insulation GRP/HDG/SS Water Tank, Top Quality Water Storage Tanks.
Application

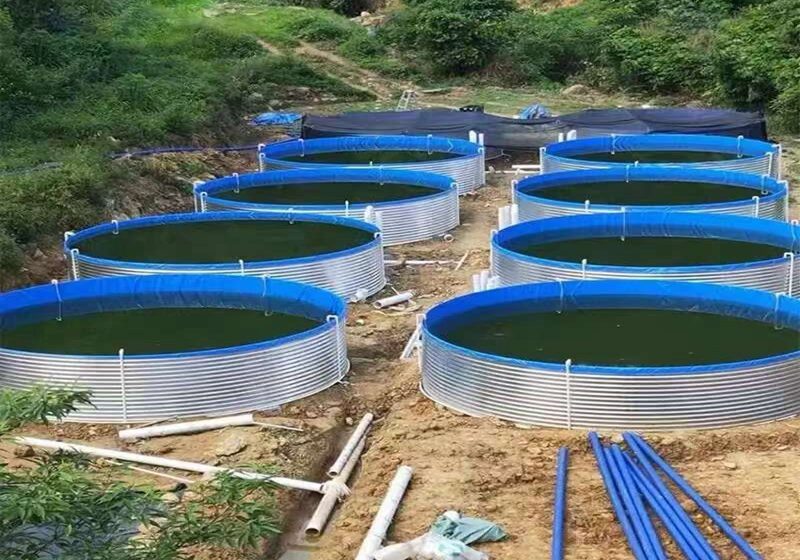

✅ Fish farming and hatcheries water storage
✅ Shrimp farming water storage

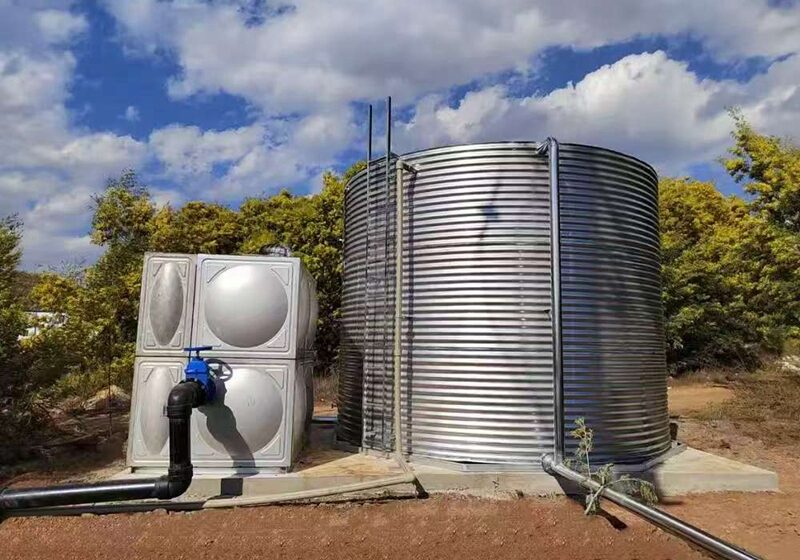

✅ Agricultural irrigation water supply
✅ Livestock watering
✅ Firefighting and emergency water storage
✅ Wastewater and storm water retention
✅ Storm water retention
✅ Construction and industrial sites Water Storage

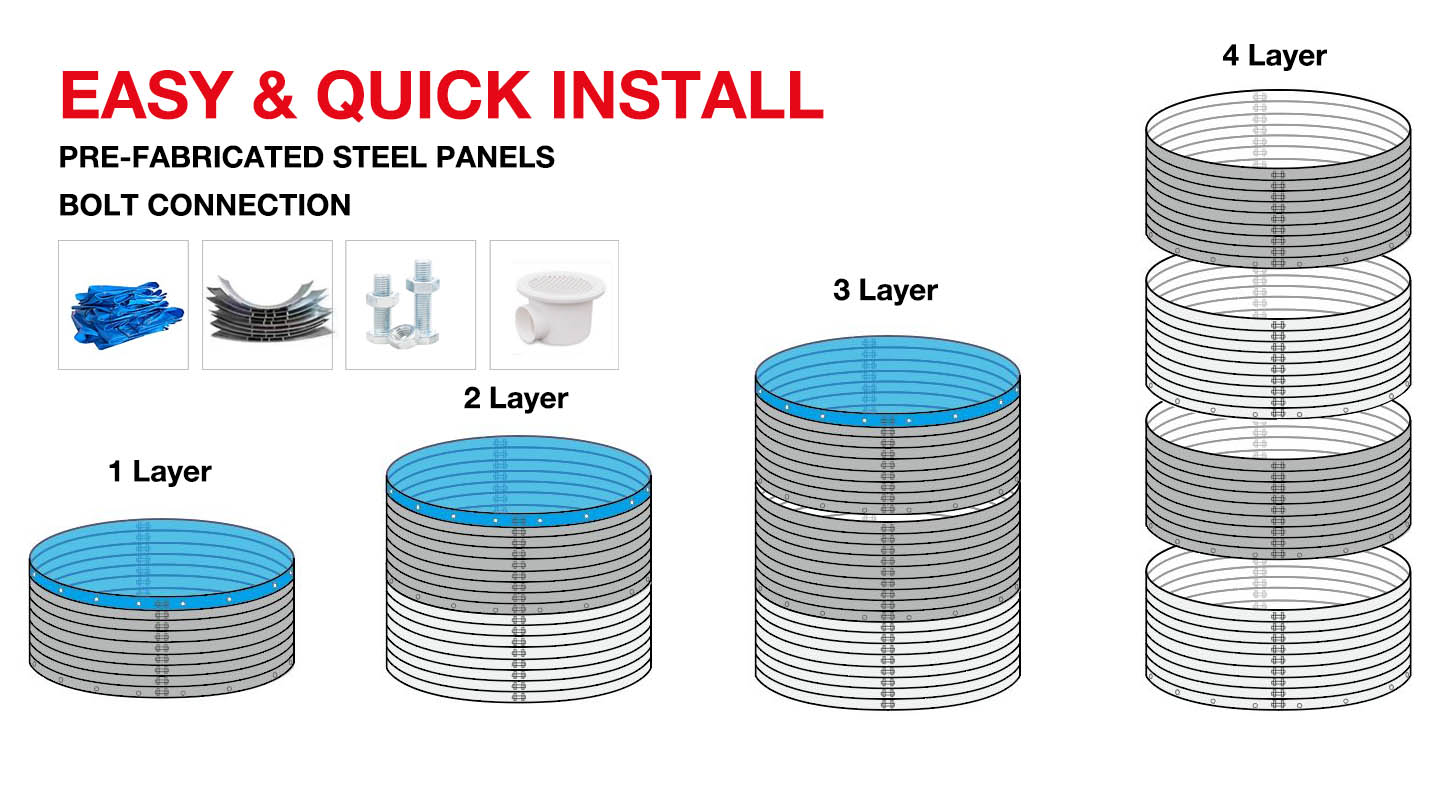

Installation Step of Corrugated Steel Water Tank
Step 1 ：：Make foundation and sand pad
Step 2 ：：Pre-buried drain and pipes
Step 3 ：：Connect corrugated galvanized steel plate
Step 4 ：：Install liner PVC sheet
Step 5 ：：Install bottom drain
Step 6 ：：Install the top roof cover
Step 7 ：：Install and connect pipes
Step 8 ：：Finish and inspection
FAQ for corrugated steel water tank
■ What size and capacity can I buy from you?
A: From capacity 1m³ to 1000m³，Diameter from 3m to 30m, height from 1m to 4m or customized.
_________________________________________________________________________________________________________________________________
■ Q: Installation of corrugated steel water tank?
A: We supply installation guide, Installation tools and training service to clients,If need us to support installation work at customer’s side,we also can provide on customer’s requirement.Installation preparation work: before installation, please do construct of concrete basic foundation, provide electric power supply, check needed water.
_________________________________________________________________________________________________________________________________
■ Q: What thickness of corrugated galvanized steel panel can provide?
A: High-strength corrugated galvanized steel outer panels, different panel thickness options provide to clients, such as 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm etc
_________________________________________________________________________________________________________________________________
■ Q: What is the Lifespan of corrugated steel water tank?
A: Different thickness of galvanized steel panel and inner liner lifespan is different, range is 8-15 years.
_________________________________________________________________________________________________________________________________
■ Q: Why are water tanks steel panel corrugated?
_________________________________________________________________________________________________________________________________
■ Q: What is corrugated steel tank for fish farming
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
■ Q: Common Applications of Corrugated Hot-Dip Galvanized (HDG) Water Tanks
