How to choose material type of water tank FRP water tank,Galvanized steel water tank
Water tanks are divided into fiberglass water tanks, stainless steel water tanks, galvanized steel plate water tanks, stainless steel galvanized composite plate water tanks, enamel water tanks, etc. according to materials. Choosing the right water tank according to different uses is the key to saving costs and ensuring the safe operation of the water tank. Next, let’s learn about water tanks made of different materials.

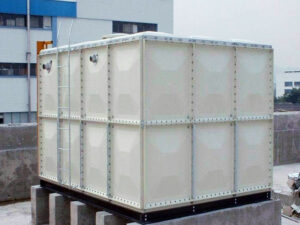

- Fiberglass water tank
It is assembled on site from SMC molded plates, sealing materials, metal structural parts and piping systems. It brings great convenience to design and construction. General water tanks are designed according to standards, while special water tanks require special design. Water tanks ranging from 0.125 to 1500 cubic meters can be assembled according to user needs. If the original water tank needs to be replaced, there is no need to modify the house, and it is highly adaptable. Specially developed sealing tape, which is water-resistant, elastic, small in deformation, tight and sealed, and can also be equipped with an insulation layer for outdoor use. The three standard plates of 1000×1000, 1000×500 and 500×500 can be combined into any combination of water tank dimensions. The water tank plate thickness is 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 20mm, 2. The overall strength of the water tank is high and there is no leakage. , no deformation, easy maintenance and inspection. Fire water tanks, production water tanks, human waterproof tanks.

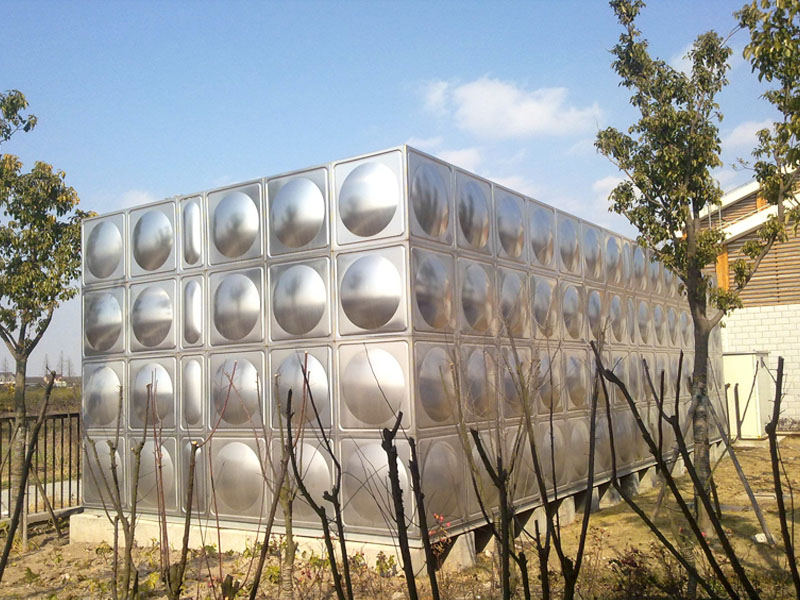

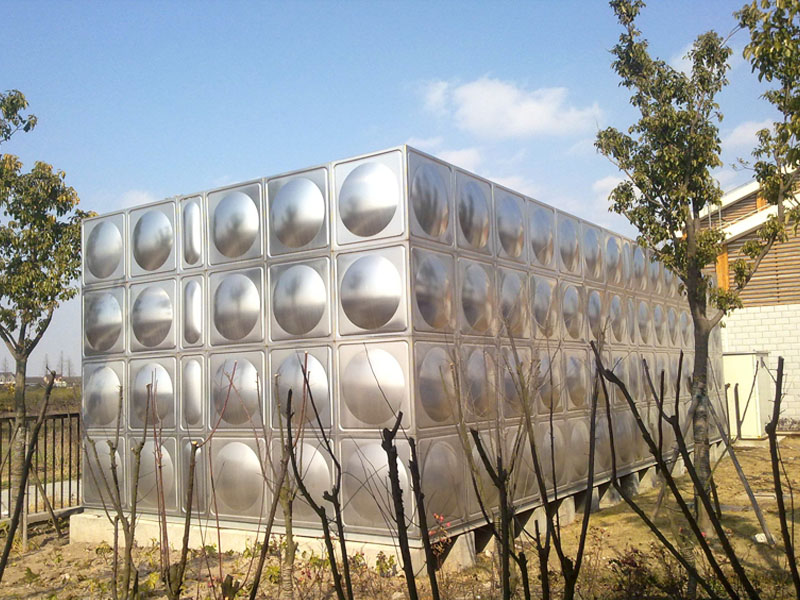

There are two types of welded combined stainless steel water tanks and assembled screw stainless steel water tanks. Both types of stainless steel water tanks are molded from food-grade 304 stainless steel, but the assembly methods are different. Stainless steel water tanks are beautiful in appearance, economical and practical, have long service life, are not easily damaged, are easy to install, require no maintenance, are light in weight, have high strength, are corrosion-resistant, high-temperature resistant, have clean water quality, are anti-seepage, are earthquake-resistant, and are easy to clean. They are equipped with stainless steel inside. Stretching and bracing reinforcement. Except for the channel steel base, all other parts are made of stainless steel. The insulation layer can also be installed for outdoor use. The insulation thickness is 5 cm, 8 cm, and 10 cm. The appropriate thickness can be selected according to the indoor and outdoor temperatures. The insulation layer shell is made of 201 material, color steel and aluminum foil cloth. Scope of application: Water supply, HVAC, and fire protection systems in various industrial and civil buildings; Food, beverage, winemaking, and water treatment industries; Pharmaceutical, petroleum, and chemical industries; Flexible and reasonable plate design can accommodate containers of various size combinations. Stainless steel square assembled water tank plate sizes 1000×1000, 1000×500 and 500×500 are available from O.5T-2000T, and different types of special production can be undertaken according to customer needs. Equipment for storing domestic water, so it is generally recommended to only store domestic water. It can also store some other solvents, but it must not store some liquids with high alkaline and acidic contents, such as hydrochloric acid and sulfuric acid. impossible. It should be noted that stainless steel welded water tanks have high water quality requirements. Do not use original well water or water with excessive chloride ions, calcium ions, or sand in the water. If the water exceeds the standard, it will corrode the welds and stainless steel plates and damage the water tank structure.

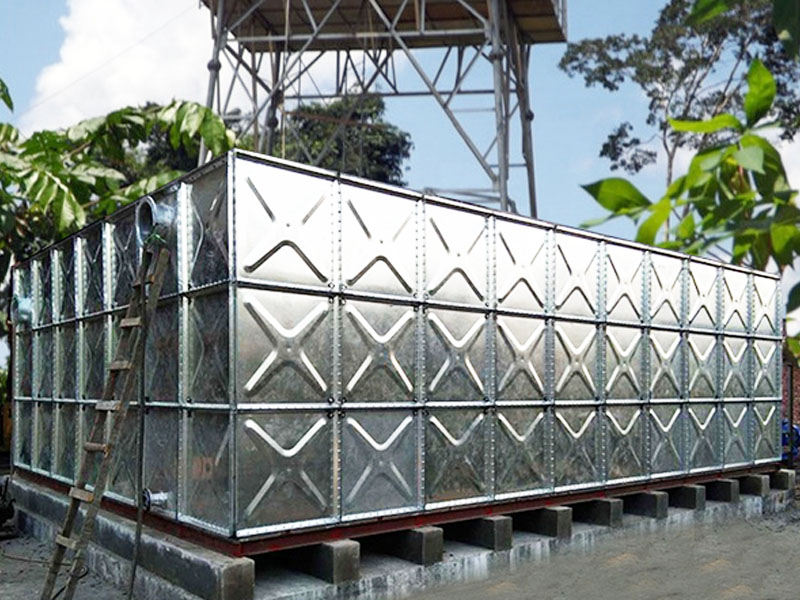

- Galvanized steel water tank
The assembled hot-dip galvanized water tank is a new type of water tank manufactured in accordance with 92SS177. The manufacturing and installation of this product are not affected by civil construction and do not require welding equipment. The surface is treated with hot zinc anti-corrosion. It is beautiful and durable, prevents secondary pollution of water quality, and meets the requirements for standardization, serialization and factoryization of building products. Galvanized water tanks are mainly used High-quality Q235 steel plates are stamped to form 1000×1000, 1000×500, 500×500 and other standard plates, which are then hot-dip galvanized to form galvanized water tank plates. The prefabricated hot-dip galvanized water tank is formed using a molding process to increase its strength several times, which not only ensures the maximum pressure-bearing needs of the water tank, but also saves materials and meets the requirements of beautiful and practical water tanks.
1) The galvanized water tank has good sealing properties and is not easy to breed algae and red worms, thus avoiding secondary pollution of water. Hot-dip galvanized steel plate [2] Water tank (manufactured with reference to national standard gb02s101)
2) Compared with the prefabricated enamel steel water tank, the hot-dip galvanized water tank has the same box structure, material selection, and assembly methods. The difference lies in the anti-corrosion method.
3) The hot-dip galvanized water tank adopts advanced technology, selects high-quality materials, and is hot-dip galvanized to form a dense galvanized layer on the surface of the water tank. The ions at the interface with the steel plate penetrate each other and mix to form a diffusion layer, which increases the corrosion resistance of the galvanized surface. Adhesion strength. The galvanized surface is smooth, easy to clean, and corrosion-resistant. The steel plate assembly structure is not easy to deform, has strong earthquake resistance, and has high impact resistance. After a long period of extensive use, it has shown good results and has been well received by users.
4) The hot-dip galvanized water tank is made of q235 steel plate, which is stamped into standard blocks of 1000*1000 and 1000*500 500*500. The surroundings are drilled, galvanized, and assembled on site. During assembly, the standard blocks are sealed with silicone and bolted. .
5) Hot-dip galvanized water tank This product is suitable for storage and regulating water tanks for building water supply, expansion and condensation water tanks for heating systems, and temporary water storage tanks for building construction, geological survey, industry, and national defense projects.
6) The diameter and location of the inlet pipe, outlet pipe and overflow pipe of the hot-dip galvanized water tank are determined by the design; there should be no less than 700mm channels around the water tank, and no less than 600mm at the bottom and top of the tank. During installation, the connection gaps around the bottom of the box and between the standard express boxes at the bottom should be located on the supports. The suitable water storage temperature for hot-dip galvanized water tanks is 4-65°C. If the storage water temperature is higher than this value, you can mention it when ordering. If the temperature exceeds 50 degrees Celsius, it is recommended to replace the silicone sealing strip (the temperature is 90 degrees, no problem).
- Galvanized composite panel water tank
It can be divided into two types: galvanized steel plate and BDF galvanized stainless steel composite plate. The installation method is divided into two types: above-ground installation and underground installation. Underground water tanks are divided into bottom-plate and bottom-less water tanks. They can also be installed directly in the water tank with the pump room system (if it is outdoors, the construction of the pump room can be reduced). It has low investment, easy installation, and beautiful appearance. The box-type integrated pump station is composed of a water tank, a special water pump, an intelligent frequency conversion control cabinet, a non-negative pressure device, a boosting device, a water diversion device and a pressure stabilizing tank. It is a new electromechanical combination of computer technology, frequency conversion technology and motor pumps. Integrated water supply equipment can meet the requirements of urban water supply pipe networks, which do not generate negative pressure when pumping water, but also have a certain ability to regulate and store water, and have continuous water supply and interruption during peak periods. Underground water tanks have a wide range of applications. Water tanks are suitable for civil buildings, hotels, and can also be used in industrial fields such as food and sanitation that have high water quality requirements. They can be used to store domestic water and fire-fighting water. The construction is quick, with standard molded panels, and can be assembled at will without the need for lifting equipment. The underground water supply equipment water tank can be placed under the public green belt, which does not affect the green area and saves resources. The composition of BDF underground water tank: BDF composite water tank plate, channel steel base, tie bar system, support column, screws, rubber strips, etc. BDF water tank is a water tank product made of new materials. The connection method is screw connection (water-stop rubber strip is sandwiched in the middle). BDF plate is a new type of plate in the water tank industry. BDF plate is a composite of stainless steel plate and galvanized plate. The side contacting the water is lined with stainless steel sheet, and the outside is a thicker galvanized steel plate to provide overall strength and stiffness. . This material combines the common advantages of the above two base materials. Without reducing strength and stiffness, the water quality meets drinking water standards. Compared with stainless steel screw-connected water tanks, the cost is greatly reduced. It is an ideal material. Water tank plates are widely used in underground water tanks for both domestic and fire-fighting purposes. The underground water tank does not take up space on the ground, allowing the land to be utilized without affecting the city appearance. Underground BDF water tanks are new products on the market and there are no relevant industry standards. Our company has formulated corporate production standards based on years of experience and combined with the actual market conditions. Each set of products shipped from the factory has undergone strict quality testing. In addition, according to the requirements of the design institute and with the consent of the person in charge of the enterprise, the structural form can be changed and processed and customized to no less than the enterprise standards. Advantages: 1. All-bolt connection, on-site assembly, fast and convenient assembly. Special sealing strips are used for sealing during assembly, so there will be no leakage or lax sealing. 2. The special tie rod structure in the water tank makes the mechanical properties more reasonable, and the height can reach 5 meters. Galvanized water tanks have no special requirements on the installation site, no lifting equipment is required, and the volume can meet all user requirements. Compared with other water tanks, underground water tanks have beautiful appearance, light weight, high strength, corrosion resistance, high temperature resistance, clean water quality, anti-seepage, earthquake resistance, no moss, no secondary pollution of water quality, easy installation, and no maintenance required. Easy to clean and many other advantages. Mainly suitable for temporary water tanks such as building water supply regulation, fire water tanks, storage water tanks, air-energy hot water systems, expansion of heating systems, condensate water tanks, building construction, road construction, geological survey projects, etc. Depending on the material of the water tank, the water tank can store either cold water or hot water. It is acid and alkali resistant, does not seep, leak, deform, or corrode.
- Enamel water tank
It is mainly stamped from high-quality Q235 steel plates to form 1000×1000, 1000×500, 500×500 and other standard plates, which are then heated and sintered at high temperatures to form enamel water tank plates. The prefabricated enamel steel plate water tank is assembled with other box structural materials. The methods are exactly the same, but the difference lies in the anti-corrosion method. The prefabricated enamel steel plate water tank adopts advanced technology and selects high-quality materials. The enamel is sintered at high temperature to form a dense glaze layer on the surface of the water tank. The ions at the interface with the steel plate penetrate each other and mix to form a diffusion layer with a thickness of about 200-300 microns. Improves the adhesion strength of the enamel surface. The porcelain surface is smooth, easy to clean, and corrosion-resistant. The steel plate assembly structure is not easy to deform, has strong earthquake resistance, and has high impact resistance. After a long period of extensive use, it has shown good results and has been well received by users. The enameled steel plate water tank is made of high-quality plates and made into single plates with different specifications (1m × lm, lm × 0.5m, 0.5m × 0.5m), and then assembled. The relevant parameters of this product are designed based on the “Building Water Supply and Drainage Design Code” (GBJ15-88), and the various hygienic indicators of this series of products have been identified by the Beijing Municipal Health and Epidemic Prevention Department as meeting the “Hygienic Standards for Drinking Water” GB5749-85, this series of water tanks has the advantages of flexible on-site assembly, not easy to deform, strong earthquake resistance, corrosion resistance, easy cleaning and long service life. The production process of combined enamel steel plate water tank: Q235 carbon steel plate shear trigger blanking——> Stretching of the convex round (square) workpiece of the first continuation mold——>Cut the trigger to cut all four sides——>Punch down the four corners——>Flanging and forming of the workpiece of the second continuation mold——>Four corner welding——>Punching——>Sandblasting Rust removal -> Enamel -> Sintering -> The overall assembly is completed.
- Plastic sprayed steel water tank
The prefabricated spray-coated steel plate water tank product uses Q235 steel plate, which is stamped into 1000*1000 and 1000*500, 500*500 standard blocks using the molding process. The surrounding is drilled, and the water tank plate is produced with special anti-corrosion treatment using electrostatic spraying process on the surface. , assembled on site, with non-toxic rubber pads between standard blocks and bolted connections. Compared with the prefabricated water tank, the plastic sprayed steel water tank has the same box structure, material selection and assembly method. The difference lies in the anti-corrosion method. 3. The plastic-sprayed steel plate water tank adopts advanced technology and high-quality materials. The surface of the water tank is subjected to special anti-corrosion treatment using electrostatic spraying technology. The surface of the water tank is smooth and easy to clean. The corrosion-resistant plastic-sprayed steel plate water tank is suitable for the storage and regulation of building water supply. Water tanks, heating system expansion, condensate water tanks, fire water tanks, domestic and domestic water tanks, and temporary water storage tanks for construction, geological survey, industry, national defense projects, etc. The atlas design parameters of the spray-coated steel plate water tank are designed in accordance with the relevant regulations in the current “Design Code for Building Water Supply and Drainage”. The water tank capacity is 1-1000 cubic meters. There are dozens of specifications in total for design reference. It can also be specially designed, manufactured and assembled according to the length, width and height dimensions of the water tank required by the user. It can also be designed and customized according to the parameters of the National Water Supply Atlas “02S101”. The characteristics of the spray-coated steel plate water tank are: high strength, color paint that is not easy to fall off, corrosion resistance, anti-aging, no pollution, low cost, more environmentally friendly, and beautiful appearance. The assembled structure of plastic sprayed steel plates is not easy to deform, has strong earthquake resistance and high impact resistance. It has shown good results through extensive use for a long time.
