HDG Water Tank Used for Fire Fighting Water Storage

Hot-Dip Galvanized (HDG) Steel Panel Water Tanks are commonly and effectively used for fire fighting water storage. They are a popular choice for both commercial and industrial applications due to their durability, scalability, and cost-effectiveness.

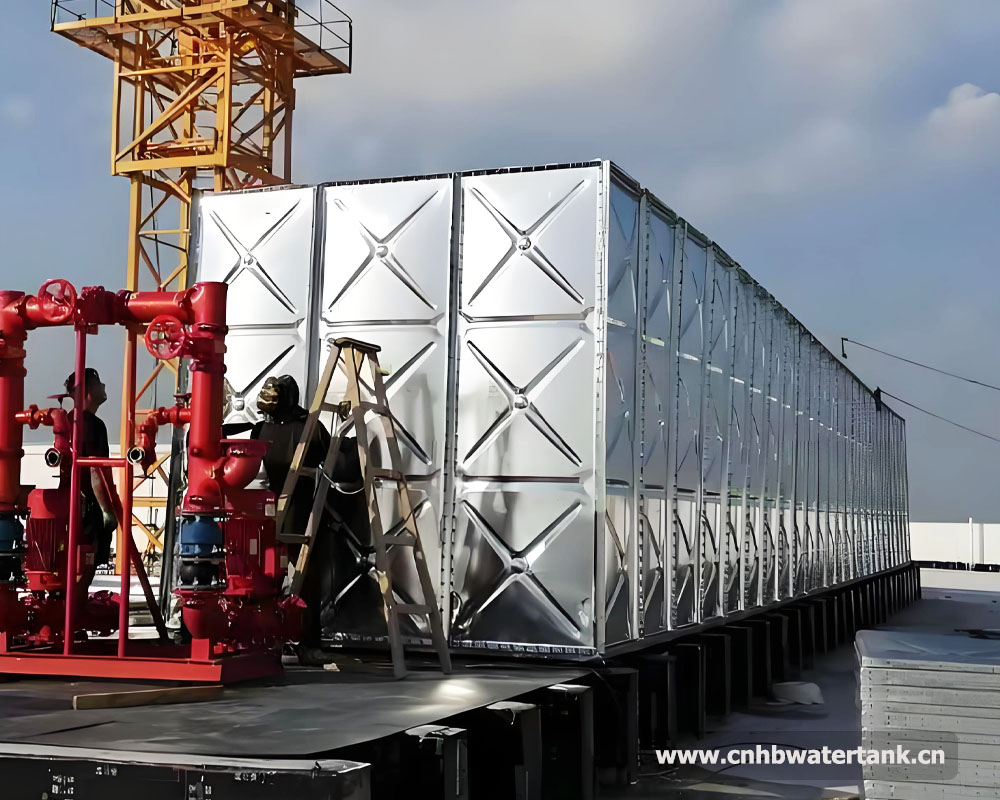

Sectional Galvanized Steel Water Tank

Here’s a detailed look at why HDG water tanks are suitable for fire protection systems and what you need to know:


✅ Why HDG Panel Tanks Are Suitable for Fire Fighting Water Storage

FeatureBenefit for Fire Fighting
High Structural StrengthCan withstand the weight of large water volumes and external loads, making them ideal for reliable emergency use.
Large Capacity & ScalabilityModular design allows tanks to be built in various sizes—from tens of thousands to millions of liters—to meet fire code requirements.
Fast On-Site AssemblyPanels are pre-fabricated and bolted together, reducing installation time compared to concrete tanks.
Corrosion Resistance (with maintenance)The hot-dip galvanized coating protects steel from rust, extending tank life—critical for systems that must remain operational for decades.
Cost-EffectiveLower initial cost compared to stainless steel or GRP (fiberglass) tanks, especially for large capacities.
Compatibility with Fire PumpsEasily integrated with fire pump skids, control panels, and piping systems.

🏗️ Typical Applications

  • Industrial facilities (factories, refineries, warehouses)
  • Commercial buildings (malls, office complexes)
  • Power plants and data centers
  • Municipal fire protection reservoirs
  • Remote or rural fire protection systems

⚠️ Important Considerations for Fire Fighting Use

  1. Water Quality & Stagnation
    • Fire water tanks are often filled for long periods with little turnover.
    • Stagnant water can promote sediment buildup and microbial growth (e.g., biofilm, Legionella).
    • Solution: Include inspection hatches, drain valves, and consider periodic flushing or water treatment (e.g., chlorine dosing or inerting).
  2. Internal Coating (Optional but Recommended)
    • While the HDG coating provides protection, an epoxy or bitumen lining on the inside can:
      • Prevent zinc leaching.
      • Enhance corrosion resistance.
      • Improve water quality.
      • Extend tank life in aggressive water conditions.
  3. Foundation Requirements
    • Must be level, solid, and load-bearing (usually reinforced concrete or compacted gravel/sand with a leveling pad).
    • Prevents uneven settling that could damage panels or gaskets.
  4. Protection Against Freezing (in cold climates)
    • Insulate the tank or use heating systems to prevent ice formation, which can damage structure and block outlets.
  5. Compliance with Fire Codes
    • Must meet local and international standards such as:
      • NFPA 22 (Standard for Water Tanks for Private Fire Protection)
      • BS EN 13987 (for steel tanks)
      • Local building and fire safety regulations
    • Includes requirements for:
      • Minimum water volume
      • Access for maintenance
      • Overflow, inlet, outlet, and drain provisions
      • Anti-vortex and anti-suction devices
  6. Regular Inspection & Maintenance
    • Inspect annually for:
      • Corrosion (especially at joints or scratches)
      • Gasket integrity
      • Bolt tightness
      • Sediment buildup
      • Algae or contamination
    • Clean and repair as needed to ensure reliability during emergencies.

🔧 Key Components in a Fire-Fighting HDG Tank Setup

  • Manhole/Cover – For inspection and maintenance
  • Inlet with float valve – To maintain water level
  • Overflow pipe – With insect-proof screen and backflow prevention
  • Drain valve – For emptying and cleaning
  • Suction outlet(s) – Connected to fire pumps (with anti-vortex plates)
  • Riser pipe or wet barrel – For direct pump connection
  • Ladder and walkway (optional) – For roof access
  • Level indicator – Visual or electronic

🆚 Comparison with Other Tank Types for Fire Protection

Tank TypeProsCons
HDG Steel PanelCost-effective, strong, scalableRequires maintenance; potential corrosion over time
GRP / FiberglassExcellent corrosion resistance, low maintenance, clean waterHigher initial cost, less structural strength
Stainless SteelVery durable, hygienic, long lifeHigh cost
ConcreteVery durable, excellent for large underground tanksLong construction time, potential for cracking

✅ Conclusion

Yes, HDG steel panel water tanks are a reliable, widely accepted solution for fire fighting water storage, especially when:

  • Budget is a concern.
  • Large capacity is needed.
  • Quick installation is required.

To maximize performance and lifespan:

  • Use proper foundation and installation practices.
  • Consider internal lining.
  • Follow NFPA or local fire codes.
  • Perform regular inspections and maintenance.

If you’re planning a fire protection system, I can help you with sizing calculations, component selection, or compliance guidance. Let me know!
