1. Product Overview
GRP (Glass Reinforced Plastic) segmented water tank is a water storage facility made of glass fiber reinforced plastic (GRP). It has excellent physical and chemical properties and can fully meet various water storage needs. Compared with traditional steel and concrete water tanks, GRP water tanks have unique advantages in corrosion resistance, strength and weight.
Its segmented and ingenious design makes installation more flexible, transportation and assembly more convenient,
and is widely used in many fields such as domestic water, fire water storage, and industrial water.
2. Structural composition
GRP plate: The main structure of the water tank is composed of GRP molded plates,
which are generally made of unsaturated polyester resin and glass fiber.
The surface of the plate is smooth and flat, and has good anti-corrosion, high temperature resistance and UV resistance.

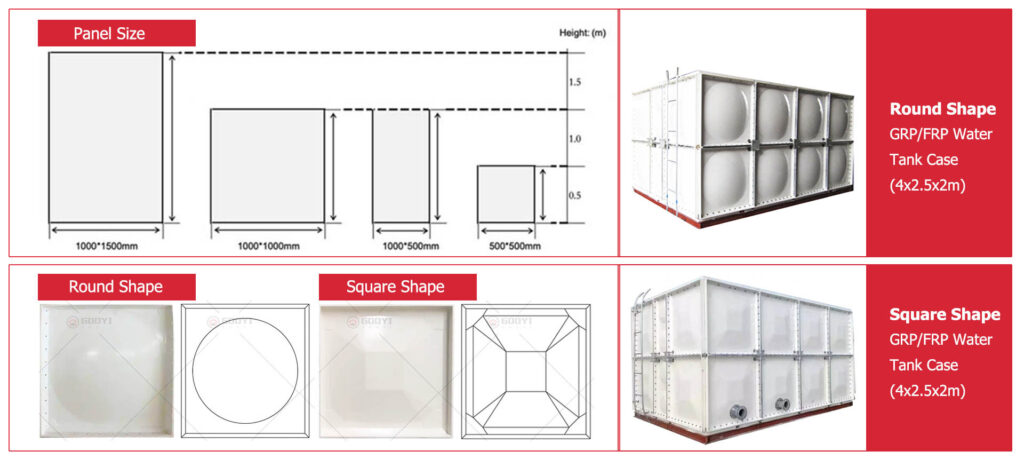

Segmented design: The water tank is composed of multiple standardized plates spliced together.
The size and quantity of each plate can be adjusted according to actual needs, so as to achieve convenient and flexible installation and expansion.
Sealing system: High-quality sealing strips and sealants are used between the panels to effectively ensure the sealing of the water tank and effectively prevent water leakage.
Support frame: The steel frame is used to support each GRP panel to ensure the stability and load-bearing capacity of the water tank.
Inlet and outlet pipe interfaces: The water tank is usually equipped with interfaces such as water inlet, water outlet, overflow, and drain,
which are convenient for connection with the water supply system and drainage system.
3. Appearance design
The appearance is simple and generous, the color is usually white, the surface is smooth and delicate, it is not easy to accumulate dust,
and it can always keep the water tank clean. The modular design can adjust the water tank capacity by increasing or decreasing the number of panels according to needs, which has extremely high flexibility.
4. Product features
Strong corrosion resistance: The water tank made of GRP material has extremely strong corrosion resistance.
Even if it is in contact with water for a long time, it can maintain stable performance. It is especially suitable for highly corrosive environments such as chemical media and seawater.
Lightweight and high strength: GRP water tanks are relatively light in weight and are easier to transport and install than steel or concrete water tanks.
The board gives the water tank extremely high strength due to the reinforcement effect of glass fiber, and can maintain good structural stability even in large capacity.
Anti-ultraviolet and weather resistance: GRP material has excellent anti-ultraviolet performance, is not easy to fade and age,
and is very suitable for long-term exposure to outdoor environments, especially in areas with strong sunlight.
Easy to maintain: The surface of the water tank is smooth, will not accumulate scale, and will not breed algae,
and cleaning and maintenance work is simple and convenient. At the same time, it can effectively prevent leakage and reduce the risk of water pollution.
Sanitary and non-toxic: The materials used meet the national drinking water quality safety standards, are suitable for storing drinking water,
will not release harmful substances, and effectively ensure the sanitation and safety of water quality.
Flexibility and scalability: The segmented design makes it easy to adjust the capacity of the water tank according to actual needs.
It can easily adapt to the needs of different places by adding or reducing panels through splicing.
5. Scope of application
Domestic water storage: It is suitable for water supply systems of residential areas, hospitals, schools, hotels, commercial buildings and other buildings. In high-rise buildings, GRP water tanks often become necessary water storage equipment.
Fire water storage: In the fire protection system, GRP segmented water tanks can efficiently store fire water and respond quickly in case of fire emergencies to meet the water demand of fire pumps.
Industrial water: Suitable for chemical, pharmaceutical, food processing and other industries, used to store pure water, production water or other process water.
Rainwater recycling system: It can be used as a rainwater storage container to collect rainwater and treat it for irrigation, cleaning or industrial cooling.
Water tower substitute: In some areas, GRP water tanks can be used as a substitute for water towers, especially in water-scarce areas or high-rise buildings, where they are more widely used.
6. Installation and maintenance
Installation: The installation of GRP water tanks requires a flat and solid ground or support foundation.
Steel frame structures are usually used to support the plates to ensure that the water tank can withstand its own weight and water storage pressure.
The plates are tightly connected by bolts and sealing strips. After installation, a sealing test is required to ensure that there is no leakage.
Maintenance: Regularly check the sealing strips, supporting structures and pipe interfaces of the water tank to ensure the normal operation of the water tank.
Clean the inside of the water tank regularly to prevent dirt deposition and keep the water clean. At the same time, check the surface and joints of the water tank to prevent aging or damage.
7. Summary of product advantages
Strong corrosion resistance and long life: GRP material has excellent corrosion resistance, can adapt to various harsh environments,
and has a long service life.
Lightweight and easy to install: The segmented design makes it easy to transport and assemble,
which can effectively shorten the installation cycle.
Flexible capacity adjustment: The water tank capacity can be easily adjusted according to needs to meet the water storage needs of different places.
Economical and durable: Long service life and low maintenance costs, it is a cost-effective water storage solution
