The foundation for a Hot-Dip Galvanized (HDG) steel panel water tank is one of the most critical components of the entire installation. A properly designed and constructed foundation ensures:
- Structural stability
- Even load distribution
- Long service life
- Leak-free performance
Since HDG panel tanks are bolted modular structures, they rely heavily on a flat, level, and stable foundation to prevent panel distortion, gasket failure, and leaks.
✅ Key Requirements for HDG Water Tank Foundations
Before discussing types, here are the essential characteristics of any good foundation:
| Requirement | Purpose |
|---|---|
| Level Surface | Prevents uneven stress on panels and gaskets |
| Flat & Smooth | Ensures full contact between bottom panels and foundation |
| Load-Bearing Capacity | Supports the total weight (water + tank + snow/wind if covered) |
| Drainage | Prevents water accumulation under the tank |
| Crack-Free & Durable | Avoids settling or shifting over time |
💡 Rule of Thumb: The foundation must support 1 ton per square meter (10 kN/m²) for every meter of water depth.
Example: A 3m high water column ≈ 3 tons/m² (30 kN/m²) load.
🏗️ Common Foundation Types for HDG Water Tanks
1. Reinforced Concrete Slab (Most Common & Recommended)
- Description: A reinforced concrete pad with steel mesh or rebar, properly cured.
- Thickness: 100–200 mm (4–8 inches), depending on tank size and soil.
- Surface Finish: Smooth trowel finish, perfectly level (±3 mm tolerance).
- Edge Beam (Optional): A raised perimeter curb helps contain leaks and stabilizes edge panels.
✅ Advantages:
- Extremely stable and durable
- Ideal for large tanks and permanent installations
- Resists settling and erosion
⚠️ Considerations:
- Requires proper curing (7–28 days)
- Must include expansion joints for very large tanks
- Drainage slope around the perimeter is essential
📌 Best For: Municipal, industrial, fire protection, and large commercial tanks.

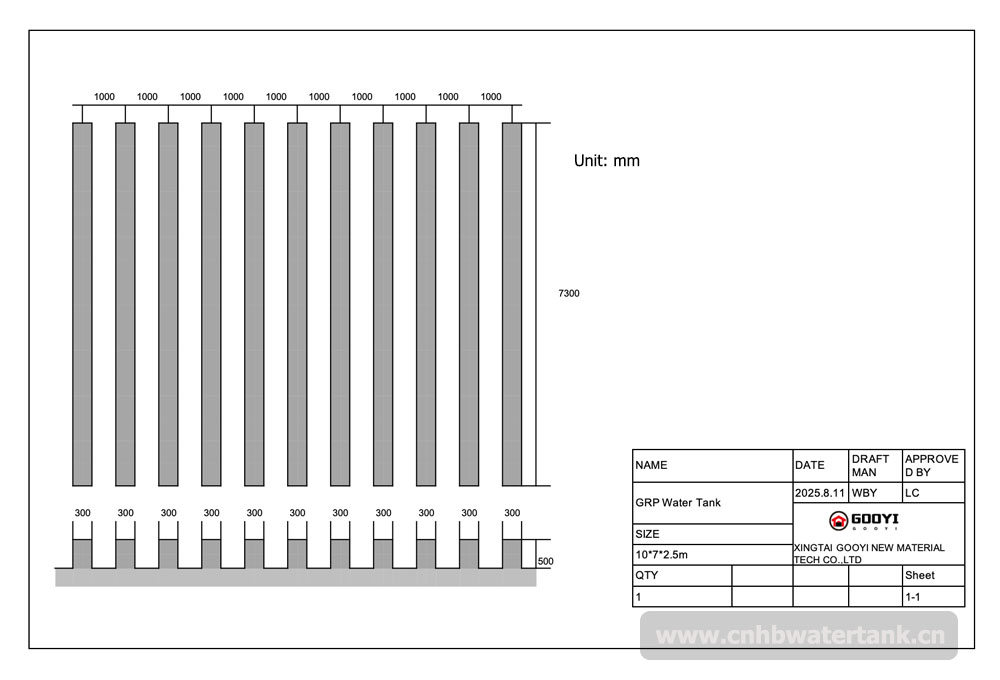

2. Compact Gravel/Sand Bed with Concrete Support Beams (I-Beams or Rails)
- Description: A layered base of compacted gravel and sand, with galvanized steel I-beams or concrete rails placed at panel joint locations to support the tank’s bottom panels.
- Layers:
- 150–200 mm compacted gravel (for drainage)
- 50 mm sand layer (for leveling)
- Galvanized steel or concrete support beams (spaced per panel width, e.g., 1.0m or 1.5m apart)
✅ Advantages:
- Faster and cheaper than full concrete slab
- Allows minor leveling adjustments
- Good drainage under the tank
⚠️ Considerations:
- Requires excellent compaction
- Not suitable for soft or unstable soils
- Sand must be clean and free of debris
📌 Best For: Medium-sized tanks, rural water projects, temporary or semi-permanent setups.
3. Precast Concrete Blocks or Pads
- Description: Pre-cast concrete blocks or pads placed at panel support points.
- Used with a compacted base layer.
✅ Advantages:
- Quick installation
- No curing time
- Reusable or relocatable
⚠️ Considerations:
- Risk of uneven settling
- Less stable than continuous slab
- Requires precise leveling
📌 Best For: Small tanks, emergency installations, or areas where pouring concrete is difficult.
4. Asphalt or Tarmac Base (Not Recommended)
- ❌ Why Avoid:
- Can soften in high temperatures
- Prone to cracking and deformation
- Uneven support leads to panel stress
🚫 Not suitable for HDG water tanks, especially in hot climates like Africa.

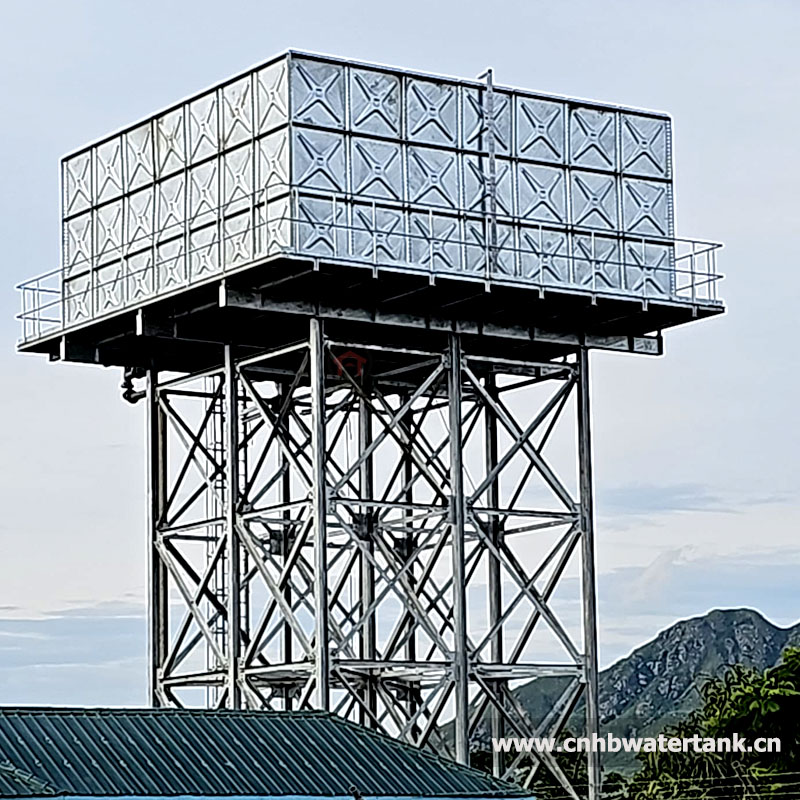

5. Elevated or Elevated Platform Foundations
- For overhead HDG tanks (e.g., on towers or steel supports):
- Foundation becomes a reinforced concrete pier or ring beam
- Designed to handle both vertical and lateral loads
- Must be engineered for wind and seismic forces
📌 Used in: Urban water supply, booster systems, fire tanks on rooftops.
✅ Conclusion
The best foundation for an HDG water tank is typically a reinforced concrete slab for permanent, large, or critical installations. For smaller or remote projects, a well-compacted gravel/sand base with galvanized support beams is a cost-effective alternative.
